Vegetation Objects

Available in the media manager "Free VB Visual Plants Samples" Vol. 1 and 2.

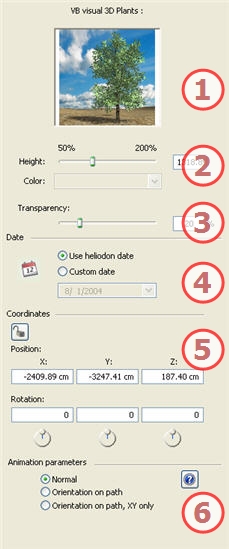

1. Preview Thumbnail.
2. Height:

• Using the slider or by entering a value in the field.

3. Transparency:

Used to render a vegetation object with greater or lesser transparency depending on the desired level of transparency. values from 0 to 100. 0 means opaque.

NB: When the slider is at the end, typing a higher numerical value allows the sizes to go beyond the end. The slider values will be updated accordingly.

4. Representation date:

• Choose: active heliodon date or calendar date.

• Heliodon date: use the date of the active heliodon
• Calendar: use the selected date.

5. X, Y, Z Coordinates

• Position: Provides the x,y,z coordinates for the object's anchor point. Entering new values redefines the position.
• Clicking on locks them and clicking on unlocks them.
• Rotation: Pivots the object along the x, y and z axes.
  Shift+click and dragging the cursor restricts the movement to 15° step.

6. Animation settings

NB: using the Timeline, in a single sequence, the object can change behavior several times.
