Preference Settings

Artlantis settings enable you to organize your working environment.

Access: Artlantis Menu > Preferences

General Tab

• Dimension Units:

  In the drop-down menu, choose the units (mm, m, cm, inches, feet and inches).

• Focal Units:

  Select mm or degrees for the viewpoint inspector focus.

• Default Location:

  Opens the pop-up menu. The change becomes effective the next time a DWG, DWF, DXF, OBJ or 3DS file that does not contain any location-related information is opened.

• Viewpoint Update Mode: Select the viewpoint update mode: manual or automatic. This concerns the positions of the camera, viewpoint, camera roll and focal length.

• Automatic
  Each time the camera settings are modified, it is the last state that is used. Previous states are not retained, except by clicking on the Back tool (provided the current document has not been saved in the meantime or another viewpoint has not been activated).



• Manual
  When the camera settings have been modified and the user wishes to keep them, the user must update the new state. If the new state is not updated, the next time the file is saved or the next time the viewpoint is changed, the viewpoint that was last updated will be the one displayed.



• Update the viewpoint by clicking on in the Preview window toolbar.

NB: Updating or not updating the viewpoint will have no effect on any editing to Shaders, objects, lights or backgrounds, which continue to be backed up automatically.

In manual update mode, thumbnails will be updated in the viewpoint list when the user clicks the "Update" button or when a new view is activated.

The thumbnails in the list will not be updated when Shaders, lights or backgrounds are modified.

OpenGL Display Mode

Affects the display in both the Preview window and the 2D View when the OpenGL display is sought.

Choose one mode from the drop-down menu:



Media Folder Path

Select the folder that will contain your Media.

By default, Artlantis Media are installed in the Shared folder of the computer.

C:Users/Public/Public Documents/Abvent/Artlantis/Media

Wireframe, Hidden Lines, Color, and Color and Wireframe.

In the OpenGL display the shaders, textures, real lighting and shadows are taken into account.

• Help us to improve Artlantis

• Checking the box will help us improve Artlantis. None of your personal information will be sent. It provides general statistics such as the most useful functions, the most used engines, etc.

Final Renderer Tab

• Rendering Output Folder

There are three choices for the default rendering output folder:

• Last Used Folder: The renderings are saved in the last folder used.

• Use Document Folder: The renderings are saved at the same level as the current file.

• Use Default Output Folder: The renderings are saved by default to the folder defined by clicking on Select Folder...

• Default File Format: in the drop-down menu, choose: JPEG, BMP, TARGA, PICT, TIFF, Photoshop or Piranesi.

• Default File Name: either the View Name or the Document + View Name.

AutoSave Tab

Activate AutoSave: Save the project at regular time.

Delay: Set 5, 15, 30 or 60 minutes.

Number of versions: Set 3, 5 or 10.

Save to path: Set the saving location of the file, beside the current document or in another place.

NB: During the saving process, Artlantis slows down the workflow.

Interface Tab

• Language: Artlantis installer checks if the languages of Artlantis can match the current Windows language. If the OS uses a different language, Artlantis is displayed in English. To change to another language, use the language drop-down menu. Changes will take effect once Artlantis is restarted.

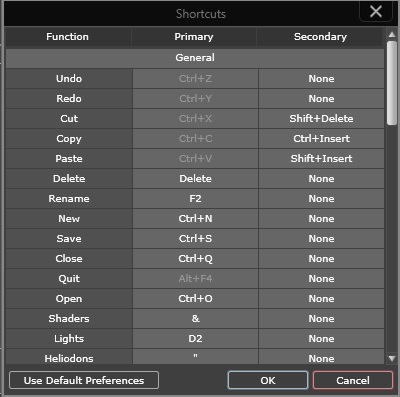

• Shortcuts: Allows you to edit the shortcuts.



• Reset Interface Preferences: The default preferences for the appearance of the interface are reapplied.
