Working with the Clipping Box in 2D View

Wireframe Display Mode	State or Action	Comments

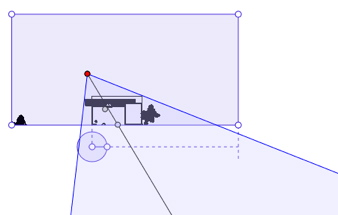

	Limiting box.	Represented by a blue cross-hair and rectangle.

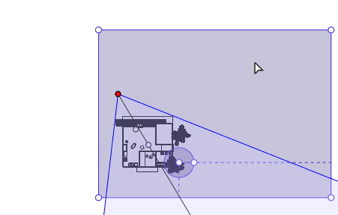

	Click/drag inside the box to move it.

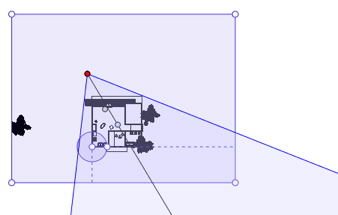

	Resize the Clipping Box.	Move the blue points located at the corners.

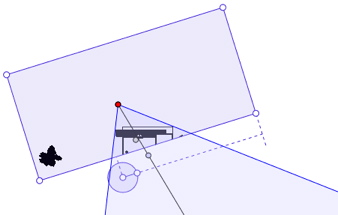

	Turn the Clipping Box.	Turn the blue handle of the cross-hair around its center. Move the center of the cross-hair to redefine the axis of rotation.

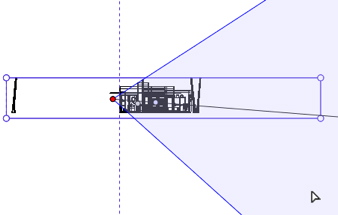

	Elevated view.	Editing operations are the same as in plane view, except that the box does not pivot.
