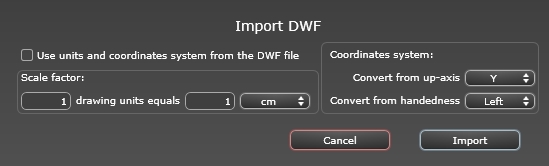

Opening DWF Files

Scale Factor

Reduces or enlarges the object size. The scale factor is a homothetic coefficient.

Coordinate System

• Convert from up-axis: The height is defined in the modeler according to the depth of the Y axis or the height of the Z axis.

• Convert from handedness: Right- or left-handed, viewed from above, changes the object's symmetrical view.

Use units and coordinate system settings

Import the file with the standard settings.

NB: Artlantis imports material names and textures.
