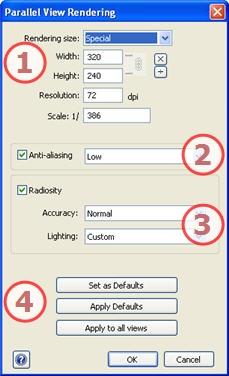

Parallel View Rendering Settings

Accessible by:

• Clicking the icon: available in the Parallel Views inspector. The set values determine the rendering and displaying in the Preview window.

1. Display of rendering options for the "realistic photo" engine in the current mode

Same parameters as for rendering Perspectives, except for printing.

Rendering size

Print Resolution for Parallel View

2. Anti-aliasing

Anti-aliasing: anti-aliasing Normal / High.

Tip: to save calculation time, select a low value while increasing the Width/Height of the rendering.

3. Radiosity

The calculation times depend on the value chosen.

This menu allows you to set the precision parameters with predefined values. I you change the values with the sliders or the text fields, the menu will be set to custom.

Precision : Normal / Average / High / Custom .

Lighting : Interior / Exterior / Custom.

NB: these settings have a very strong influence on the rendering time.

Tip: Calculate small-sized images or use the Batch Rendering command.

4. Application settings

Define as default / Default settings / Apply to all viewpoints for the selected inspector :

Respectively allow the user to define current settings as the default, to use the default settings or propagate these settings to all other views for the inspector concerned.

NB: the display of options in expert mode is activated in the Preferences.dialog.
