Batch Rendering Window

Rendering > Batch Rendering Window

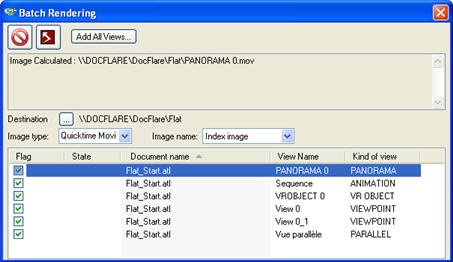

The Batch Rendering Window

All batch renders are processed by the "Artlantis Batch Render" application.

Inspector Menu > Batch Rendering.

The Artlantis rendering manager displays the list of items that are to be processed.

Toolbars

Deletes the selected view
Mark the selected view as needed to be calculated, even if it has already been rendered.
Indexed: names of renderings with the same name will be indexed numerically

Replaced: the name of a render with the same name will replace the existing file.

of the current project to the list of views that need to be rendered.
Destination: the destination of the rendering file can be redefined by clicking on the Folder button.
Image type: to redefine the rendering image format: JPEG, BMP, TGA, PICT, TIFF, Photoshop, Piranesi or movie formats.

Viewpoints List:

Check the box opposite the name of the image in the list. This image will be rendered later.

Document name: the name of the atl file

View Name: The name of the viewpoint

Kind: type of viewpoint; Perspective, Parallel, Panorama, Animation, VR object.

Diodes: color codes
Diode	Status	Comments
Gray	Not rendered yet	Waiting for processing by Artlantis Batch Render if the box is checked.
Green	Rendered
Orange	Error during rendering	Check the information at the bottom of the Batch Rendering window
Red	Not rendered due to one or more errors	Check the information at the bottom of the Batch Rendering window
