Saving an AOF Document

Saves the entire active scene as an .aof object. Does not replace or close the file you are currently working on.

NB: The origin of the created object is similar to the Scene origin, to modify See "Transfer the origin of the anchor point:"

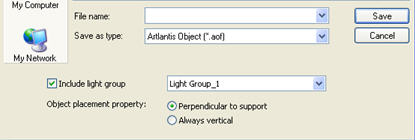

• Select File > Export as Object...

1. Include light group:
• Choose the light group you wish to save with the object. This group will be automatically integrated into the project concerned.

2. Object positioning:
• Always vertical to project regardless of the surface to which it is applied (for example, a vehicle).
• Perpendicular to the surface on which it is placed.
