VR Objects Rendering and Playing

Rendering a VR object

A VR Object is composed of images saved in jpeg files. The file format of the VR Object is html, and is played on a Web browser.

Select a destination folder.

The rendered VR Object:

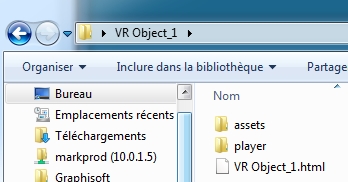

In the destination folder, a folder with the name of the VR Object is created. Inside are two folders named assets and player and one html file with the name of the VR Object.

The asset folder contains all jpeg images of the VR Object, a ivisit3d.xml file and a special folder.

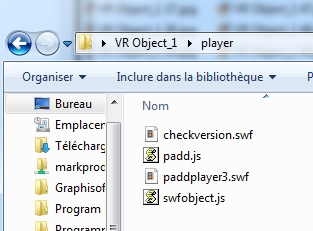

The player folder contains the files necessary to read the panorama animation with a Web browser, including the Flash swf file.

Double clicking on the html file launches the current Web browser; the VR Object is displayed in a browser window.

Adobe Flash Player must be installed to read the panorama. http://www.adobe.com/support/flashplayer/downloads.html

NB: To read your VR Object on an iOS or Android device you will need to generate a vro file using iVisit 3D Builder.
